Easy striking and restriking
Easy Slag removal
Low Spatter
Smooth stable arc
Product Overview
ISOARC E309L-16 is a premium rutile-coated, low carbon stainless steel electrode designed for welding 23Cr-13Ni stainless steels, joining stainless steel to carbon or low alloy steels, and depositing buffer layers prior to hardfacing or surfacing.
The extra-low carbon weld deposit minimises carbide precipitation, providing excellent resistance to intergranular corrosion while delivering high crack resistance when welding dissimilar materials. Manufactured using internationally proven formulations under an ISO 9001 Quality Management System, ISOARC E309L-16 offers a smooth, stable arc, easy restriking, low spatter and excellent slag removal, producing high-quality welds in demanding industrial applications.
Typical Applications

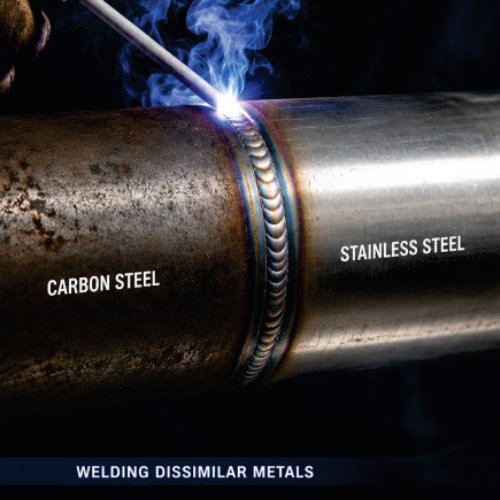

Joining Stainless Steel to carbon steel
Stainless Steel overlays
Pulp and paper plants
Buffer layers before hardfacing
Chemical processing plants
Sugar mills
Technical Specifications
Classification
AWS A5.4 E309L-16
Type
Premium combination type
Current
AC and DCEP
Welding Positions
All Positions except vertical down
Typical Use
Welding of Dissimilar steels
Redrying Temperature
If moist redry at 250 deg C for 1 hour
Storage
Store in cool dry place off the ground below 80% humidty
Mechanical Properties
Tensile Strength
> 550 MPa
Yield Strength
> 30%
Elongation
> 420 MPA
Why Choose ISOARC E309L-16
Manufactured by Thuthuka Welding Products (Pty) Ltd
Made in South Africa by a factory that is run according to ISO9001:2015 standards
Formulations used have been developed under refined over the last 30 years
